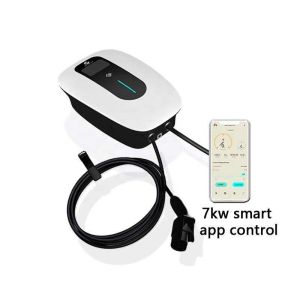

Mode 2 Single Three Phase Type2 CE TUV 220V 7kw Ocpp 1.6 WiFi Home Load Balancing Smart EV Charger Car Charging
A wall-mounted electric vehicle (EV) charger is a device that is mounted on a wall and used to charge the battery of an electric vehicle. It typically consists of a charging cable with a plug on one end that is plugged into an outlet, and a connector on the other end that is plugged into the EV. The charger converts the AC power from the outlet into DC power, which is used to charge the EV battery.
Wall-mounted EV chargers are generally more convenient than portable chargers, as they are permanently installed and do not need to be carried around. They are also typically more powerful, with higher charging speeds, and can charge an EV battery much faster than a portable charger.
There are various types of wall-mounted EV chargers available, with different levels of power and charging speeds. Some are designed for use in residential settings, while others are intended for commercial or public use. Most wall-mounted EV chargers can be installed by a qualified electrician, and may require additional electrical wiring or modifications to the electrical system in order to be installed properly.
Parameter | Product model | Dark house Series | |
Structure | Size(mm) | 350(H)*240(W)*95(D)mm | |
Installation | Wall-mounted Type / Floor-standing Type Installation | ||
Charging cable | 5M(16.4FT) standard, 7.5m / 10m or other size customizable | ||
Weight | 8.0kg (Including charging gun) | ||
Electrical Specifications | Input voltage | AC220V±20% / AC380V±10% | |
Frequency rating | 45~65HZ | ||
Power rating | 7KW /11KW /22KW Optional | ||
Measuring accuracy | 1.0 grade | ||
Output voltage | 7KW:AC 220V±20% 11/22KW :AC 380V±10% | ||
Output current | 7KW:32A 11KW:3*16A 22KW:3*32A | ||
Measurement accuracy | OBM 1.0 | ||
Function | Indicator light | Y | |
4.3 inch display screen | Optional | ||
Communication interface | WIFI/4G/OCPP1.6/LAN Optional | ||
Operating conditions | Working temperature | -40~+65ºC | |
Relative humidity permission | 5%~95%(non-condensation) | ||
Maximum altitude permission | ≤3000m | ||
IP grade | ≥IP55 | ||
Cooling way | Natural cooling | ||
Applicable ambient | Indoor/outdoor | ||
ECT | UV resistance | ||
MTBF | ≥100000H | ||
|
|
